Bipolar Titanium Hypochlorite Generation From Seawater with Iridium Coating
Product introduction :
Technical parameters:
Type | Available
Cl2
(Kg/h) | Flow
water (m3/h) | AC
consumption
(kw ) | Av Cl2
Concentration
(ppm) | Treatment of Cooling Water |
Dosing
Rate
(ppm) | Cooling Water Flow
(m3/h) |
CNJS-SW-1000 | 1 | 5 | 4.1 | 200 | 1 | 1000 |
Generation principle :
CNJS-SW series sodium hypochlorite generator is a newly and work through electrolysis of salt water , the whole system consists of electrolysis electrode assembly , rectification power and automatic control system , dissolving system , filtering system , ratio device and so on . The salt water is electrolyzed into sodium hypochlorite . Sodium hypochlorite is a kind of disinfection which can gets strong antivirus and bleach power
The main process can be simplified as follows:
- Application :
- Extensive use of seawater as cooling water such as: petroleum chemical plants, steel plants, thermal power stations and other coastal and marine plants.
- Seawater as raw material can simply generate the required amount of sodium hypochlorite. Water electrolysis device can applied in many areas. And also in the field of water treatment oxidation and disinfection by sodium hypochlorite.

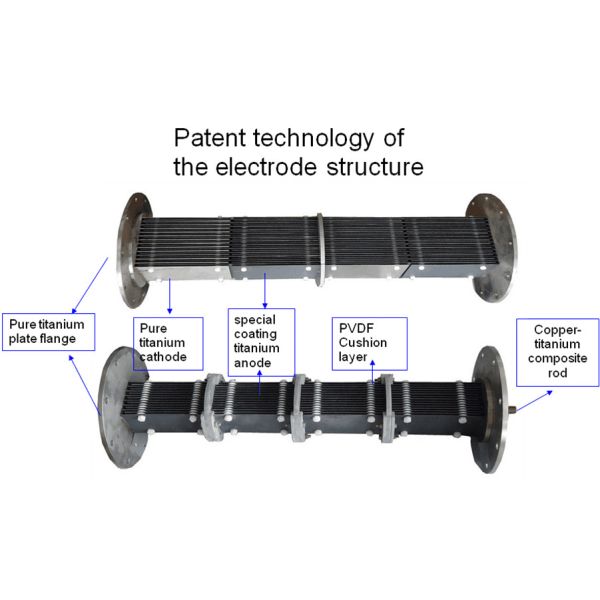

The characteristics of the electrolytic cell:
Bipolar・transparent electrolytic cell
Cathode and anode comprehensive visualization | Comprehensive protection of electrode |
Demountable electrode | Easily replaced |
Horizontal cylindrical cell | Compact and simple |
Corrosion-resistant material
Anode | 2 mm titanium plate + nano-scale coating | Corrosion-resistant, high performance, long service life (> 5 years) |
Cathode | 2 mm titanium plate | Corrosion-resistant |
Gasket | PVDF | Replace in the same period with the electrode |
Power supply terminal | Titanium
Titanium and copper composite material | Corrosion resistant |
Long-term stability
Electrodes arranged in series | The electrolytic cell liquid flowing smoothly | ・Prevent scaling
・Supply new
liquid
Maintain the
coating state
Ensure
electrolysis condition
↓
Long-term stablility |
Frame diameter moderate | Prevent one-way flow and make sure uniform flow between electrodes |
Moderate cross-sectional shapes | liquid supply process | Supply new liquid to the electrodes |
Gas path | Supply new liquid to the
electrodes |
Cycle way | To make sure a proper flow rate in the cell |
High corrosion resistance
High –performance
Long electrode life | Maintain long-term stable electrolysis
performance | ・Avoid failures
↓
Long-term
stability |
Fewer gasket | Operation without leakage |
Electrode flange one-piece | Pipe pressure ability strong, reduce leakage |
Good maintainability
Cell Weight | 30-80kg | Do not need heavy machine when repair and replaceable electrode on-site |
Accessories specifications | Standard Parts | Procurement convenience |
Frame | Outer material is alumina | Long as new |
Easily to clean the electrode
Acid cleaning device | Portable acid cleaning device | Without removing the cell and easy to cleaning the electrode |
Clean the nozzle | Set the cleaning nozzle at the entrance of electrolytic cell |
Other advantages and features:
1.CNJS use the seawater as the raw material, make the required amount of sodium hypochlorite.
2.CNJS on –site no need for storage or transportation of dangerous chemicals.
3.Recently by adding medicine to prevent adhere of marine organisms, and the economy effect is not well, thus attracting more attention on seawater electrolysis.
Compared with the previous forms of disinfection:
Measure(before)
Inject of chlorine or commercial
sodium hypochlorite
Problem
Liquid chlorine :
suffered the risk of leakage
Using CNJS seawater equipment Commercial sodium hypochlorite : can solve all the problems Long-term storage, the concentration will decline
